Specifications:
●18W LED Ceiling Light/Panel Light/Downlight
●Input Voltage: 110-240Vac
●Power Frequency: 50/60Hz
●CCT:3000K±300K/4000K/6000K±500K & (Memory Adjustable)
●Working Temperature: -30~+50℃
●Detection Range: 120°/360°
●Detection Distance: max.6m(<24℃)
●Time Delay:30sec/120sec
●Detection Moving Speed: 0.6-1.5m/s
●Installation Height: 2.2-4m Ceiling Mount/1.8-2.5m Wall Mount
Installation: (3 ways install in 1 light)
A: 2 screws for direct surface mounting
B: Mounting bracket, support Junction box quick installation
C: Recess mount (holes support Φ6.5-20.5cm)
Function:
1: Can identify day and night/ OFF sensor: The consumer can adjust working state in different ambient light. It can work in the daytime and at night when it is adjusted on the "sun" position (max). It can work in the ambient light less than 10LUX when it is adjusted on the "moon" position (min). If consumer no need use sensor function,When turn off the sensor function,as a normal LED lamp.
2: Adjustable Time Delay and Time-Delay is added continually: the length of time delay could be set according to the customers' requirement, the minimum time of this item is min 30sec maximum is 120sec,When it receives the second induction signals within the first induction, it will restart to time from the moment.
3: CCT Adjustable: The colour temperature may be set by means of a switch on the rear of the luminaire. The options are:3000K±300K (Warm light), 4000K (Natural light), 6000K±500K (Cool light) and Switch change colour (Memory).t: 2.2-4m Ceiling Mount/1.8-2.5m Wall Mount
Setting:

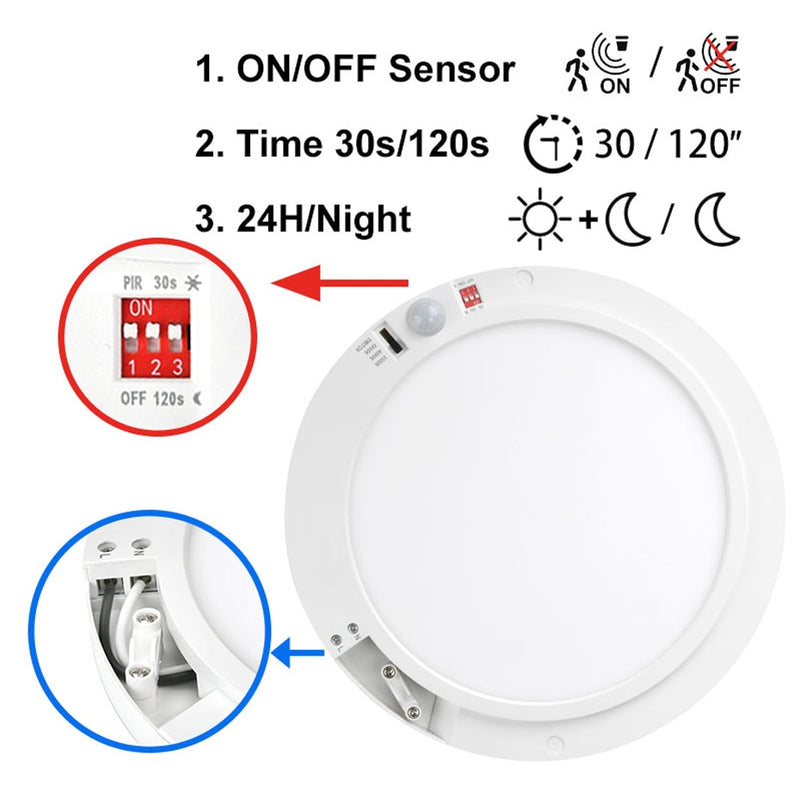

DIP Switch：
1 Position: ON/OFF Sensor. When turn off the sensor function,as a normal LED lamp. Upwards: Sensor mode Downwards:OFF sensor
2 Position: TIME adjustable: Hold time Min.30sec Max.120sec Upwards: 30sec Downwards:120sec
3 Position: LUX adjustable : The daylight mode works day and night or the night mode will not light up during the day. Upwards: 24H mode Downwards:Night mode
CCT Switch：
1 Position: 3000K±300K(Warm light)
2 Position: 4000K(Natural light)
3 Position: 6000K±500K(Cool light)
4 Position: Change via turning ON/OFF wall switch.The SWITCH option allows the colour temperature to be controlled from an external wall switch. Switch the luminaire off and on again repeatedly until the desired colour temperature is achieved(After turning off the light for 3 seconds, it will remember the last light colour to turn it on next time).
| Color | White/Black | Power Source | AC |
| Usage | Daily Lighting | Is Bulbs Included | Yes |
| Model Number | Ceiling Lamp | Is Smart Device | no |
| Finish | None | Features | PIR Sensor Ceiling Light |
| Technics | Spent grinding | Is Dimmable | No |
| Application | Kitchen,Dining Room,Bed Room,Foyer,Study,BATHROOM | Warranty | 1 Year |
| Number of light sources | > 20 | Lighting Area | 5-10square meters |
| Base Type | None | Switch Type | None |
| Install Style | Surface mounted | Material | PVC/Plastic |
| Certification | ce,ROHS，ETL | Style | Modern Style |
Set up by yourself
1：Turn on the sensor is the sensor light, turn off the sensor is the normal light
2：Delay light off supports 30 seconds and 120 seconds
3：Working mode 24 hours a day also sense or only sense at night

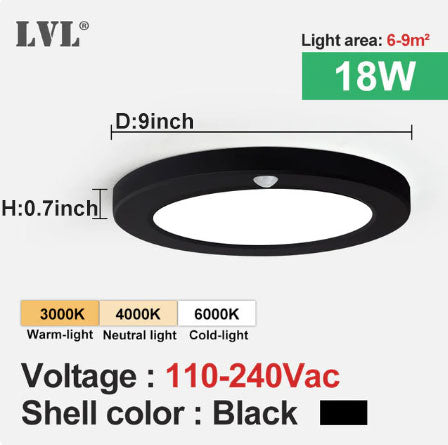

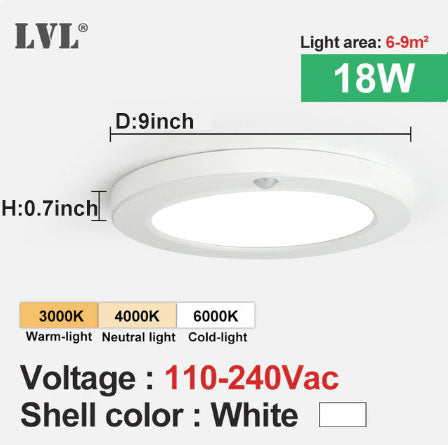

CCT 3 Lighting Colors
1: Keep 3000K
2: Keep 4000K
3: Keep 6000K
4: Choose by Wall Switch (can Memory Lighting Color you want)

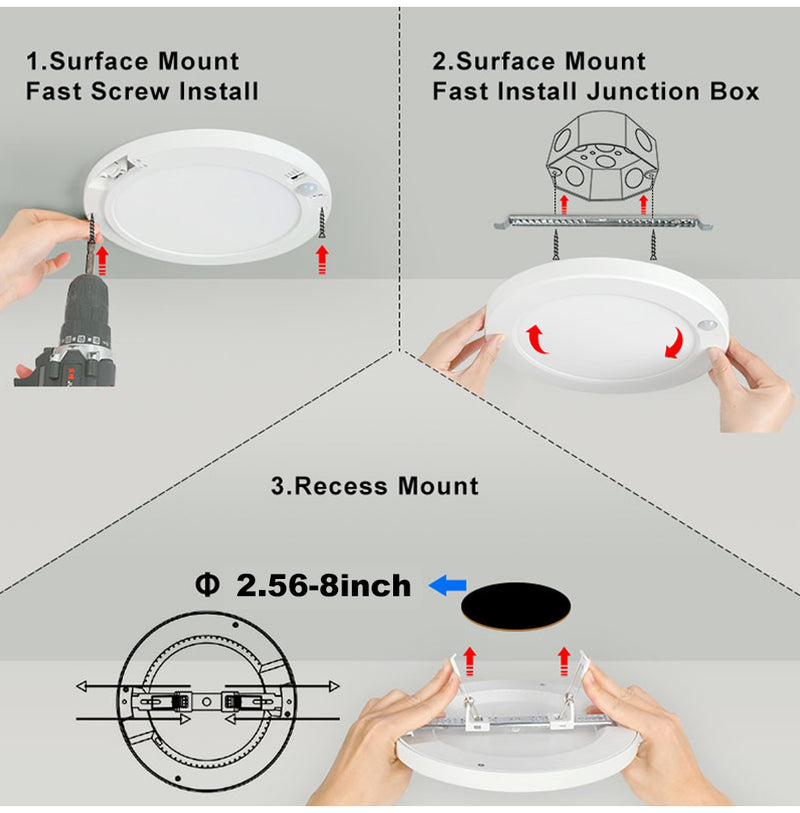

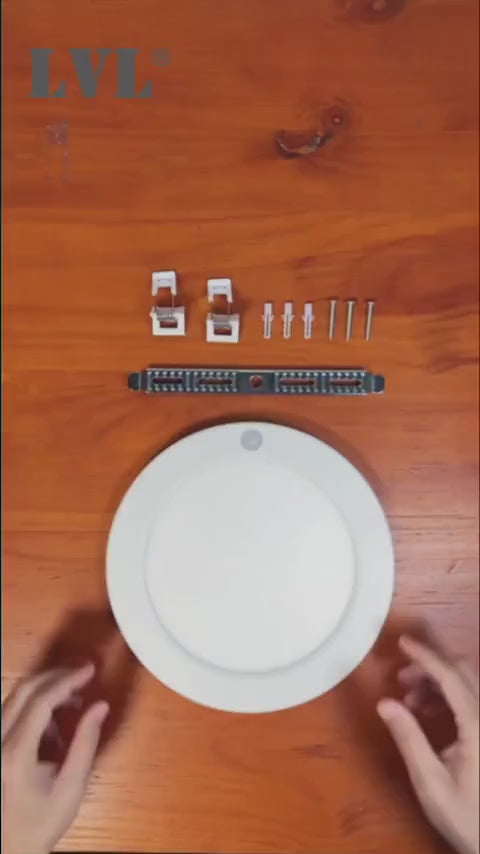

1 Lamp supports 3 installation methods
1: Surface mount fast by 2 pcs screw install
2: Surface mount quick by bracket (also support junction box mounting)
3: Recess mount support open hold size (6.5-20.5cm)
Direct ceiling mount
The lamp body has its own binding post, which is more convenient for wiring
